Axis VR H Frame servo positioner
The Three-Axis Vertical Servo Positioner is an advanced industrial tool designed to provide precise control and manipulation along three orthogonal axes in a vertical orientation. This innovative positioner combines cutting-edge servo motor technology with a robust framework, offering exceptional flexibility and accuracy in various manufacturing and automation applications where vertical motion is crucial.
Key Features
Triple-Axis Servo Control
At the heart of the system lies independent servo motors for each axis, enabling simultaneous and precise control of vertical, horizontal, and lateral movements. This triple-axis control capability facilitates complex positioning tasks with superior accuracy and efficiency, enhancing overall productivity and versatility.
High-Speed Performance
Equipped with high-performance servo motors and advanced motion control algorithms, the positioner delivers rapid and responsive motion across all three axes. Whether executing rapid tool changes, indexing operations, or intricate assembly tasks, users can rely on the positioner to maintain optimal speed and precision.
Dynamic Load Handling
Despite its vertical orientation, the Three-Axis Vertical Servo Positioner boasts a robust construction capable of handling a wide range of payloads. From lightweight components to heavy machinery parts, the positioner ensures stable and consistent
Vertical Framework Design
The positioner features a vertical framework that provides a stable and adaptable structure for mounting workpieces, tools, or other equipment. This design maximizes vertical space utilization and enables seamless integration into production lines or work cells where vertical motion is essential.
Programmable Motion Profiles
Operators can easily program and customize motion profiles to suit specific manufacturing processes and applications. This flexibility enables adaptive positioning strategies tailored to different workpieces or production requirements, optimizing cycle times and enhancing overall process efficiency.
Integrated Safety Features
Safety is paramount in industrial environments, and the positioner incorporates various safety features to protect operators and equipment. Emergency stop functionality, overload protection, and collision avoidance systems safeguard against potential hazards, ensuring reliable and secure operation in diverse work environments.
Conclusion
The Three-Axis Vertical Servo Positioner represents a cutting-edge solution for precise positioning and manipulation in industrial automation and manufacturing environments where vertical motion is crucial. With its triple-axis servo control, vertical framework design, and high-speed performance, this positioner empowers users to optimize production processes, enhance product quality, and drive innovation across a wide range of applications.

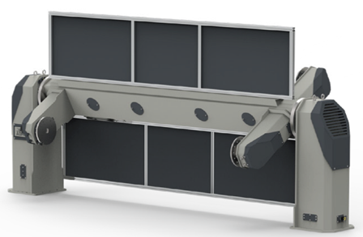

Axis VR H Frame servo positioner
| No. | Descriptions | TP-HF-500-VR-0 | TP-HF-1000-VR-0 | TP-HF-2000-VR-0 |
|---|---|---|---|---|
1 | Rated Payload | 500kg+500kg | 1000kg+1000kg | 2000kg+2000kg |
2 | Standard Rotation Radius of Axis 1 | R1200mm | R1200mm | R1250mm |
3 | Standard Rotation Radius of Axis 2 and Axis 3 | R500mm | R600mm | R700mm |
4 | Allowable Eccentricity of Rated load | ≤100mm | ≤100mm | ≤100mm |
5 | Flipping Angle of Axis 1 | ±180° | ±180° | ±180° |
6 | Rotation Angle of Axis 2 and Axis 3 | ±360° | ±360° | ±360° |
7 | Rated Flipping Speed of Axis 1 | 50°/S | 30°/S | 30°/S |
8 | Rated Rotation Speed of Axis 2 and Axis 3 | 70°/S | 50°/S | 50°/S |
9 | Repeat Positioning Accuracy | ±0.08mm | ±0.10mm | ±0.15mm |
10 | Height of Axis One Rotation Center | 1450mm | 1450mm | 1500mm |
Notes
1. Rated payload within the radius of the main axis. It may vary from model to model.
2. Total Height of Workpiece and Fixture may varies upon model to models.
3. Rotation Disk is standard. It can be customized.
4. Positioner Payload available upto 10000kg on custmoized orders
