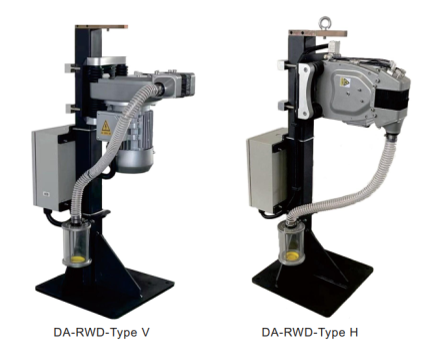

DA-RWD series electrode tip dresser
The DA-RWD Series Electrode Tip Dresser is a precision tool designed for dressing electrode tips in industrial applications. With its advanced features and capabilities, this equipment ensures accurate and consistent dressing of electrode tips, thereby enhancing the performance and efficiency of manufacturing processes.
Key Features
Triple-Axis Servo Control
At the heart of the system lies independent servo motors for each axis, enabling simultaneous and precise control of vertical, horizontal, and lateral movements. This triple-axis control capability facilitates complex positioning tasks with superior accuracy and efficiency, enhancing overall productivity and versatility.
High-Speed Performance
Equipped with high-performance servo motors and advanced motion control algorithms, the positioner delivers rapid and responsive motion across all three axes. Whether executing rapid tool changes, indexing operations, or intricate assembly tasks, users can rely on the positioner to maintain optimal speed and precision.
Dynamic Load Handling
Despite its vertical orientation, the Three-Axis Vertical Servo Positioner boasts a robust construction capable of handling a wide range of payloads. From lightweight components to heavy machinery parts, the positioner ensures stable and consistent
Vertical Framework Design
The positioner features a vertical framework that provides a stable and adaptable structure for mounting workpieces, tools, or other equipment. This design maximizes vertical space utilization and enables seamless integration into production lines or work cells where vertical motion is essential.
Programmable Motion Profiles
Operators can easily program and customize motion profiles to suit specific manufacturing processes and applications. This flexibility enables adaptive positioning strategies tailored to different workpieces or production requirements, optimizing cycle times and enhancing overall process efficiency.
Integrated Safety Features
Safety is paramount in industrial environments, and the positioner incorporates various safety features to protect operators and equipment. Emergency stop functionality, overload protection, and collision avoidance systems safeguard against potential hazards, ensuring reliable and secure operation in diverse work environments.
Conclusion
The DA-RWD Series Electrode Tip Dresser offers advanced capabilities for precision dressing of electrode tips in various industrial applications. With its precision, versatility, and automated operation, this equipment enhances process efficiency, improves product quality, and contributes to overall manufacturing success.
Data and variants of DA-RWD series electrode tip dresser
| No. | Model | DA-RWD (conventional) | DA-RWD series electrode tip dresser |
|---|---|---|---|
1 | Drive mode | Gear drive | Grind upper/lower electrode cap simultaneously, to align the electrode cap |
2 | Power supply | 3-phase AC 380V | after grinding, thus improving grinding efficiency. |
3 | Frequency | 50Hz | Fitted with floating shock absorption device by default, to reduce the impacts |
4 | No-load revolving speed | 244rpm | from tip dresser and welding tong during grinding and get adapted to grinding |
5 | Rated output torque | 39.2N*m | position. |
6 | Rated output power | 1kW | High grinding torque (rated output torque: 39.2N*m) and high revolving speed |
7 | Floating adjusting range | ±15mm | (grinding period is 1s). |
8 | Solenoid valve SOL | DC24V4.5W MAX 2.0MPa | The blade is made of high-quality alloy steel, to ensure good tenacity, surface |
9 | Weight (body) | 23Kg | hardness over HRC67, keep it sturdy and durable and reduce use cost. |
10 | Weight (complete machine) | 74Kg | With adjustable installation height, the main engine of tip dresser can be flexibly switched to horizontal, vertical or tilted state. |
Notes
1. Rated payload within the radius of the main axis. It may vary from model to model.
2. Total Height of Workpiece and Fixture may varies upon model to models.
3. Rotation Disk is standard. It can be customized.
4. Positioner Payload available upto 10000kg on custmoized orders
