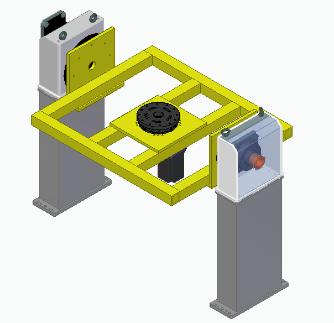

Two-axis U type servo positioner
Two-axis U type servo positioner
The Two-Axis U-Type Servo Positioner is a sophisticated industrial tool designed to provide precise control and manipulation along two orthogonal axes within a U-shaped framework. Combining advanced servo motor technology with a versatile U-shaped design, this positioner offers unparalleled flexibility and accuracy in various manufacturing and automation applications.
Key Features
Triple-Axis Servo Control
At the heart of the system lies independent servo motors for each axis, enabling simultaneous and precise control of vertical, horizontal, and lateral movements. This triple-axis control capability facilitates complex positioning tasks with superior accuracy and efficiency, enhancing overall productivity and versatility.
High-Speed Performance
Equipped with high-performance servo motors and advanced motion control algorithms, the positioner delivers rapid and responsive motion across all three axes. Whether executing rapid tool changes, indexing operations, or intricate assembly tasks, users can rely on the positioner to maintain optimal speed and precision.
Dynamic Load Handling
Despite its vertical orientation, the Three-Axis Vertical Servo Positioner boasts a robust construction capable of handling a wide range of payloads. From lightweight components to heavy machinery parts, the positioner ensures stable and consistent
Vertical Framework Design
The positioner features a vertical framework that provides a stable and adaptable structure for mounting workpieces, tools, or other equipment. This design maximizes vertical space utilization and enables seamless integration into production lines or work cells where vertical motion is essential.
Programmable Motion Profiles
Operators can easily program and customize motion profiles to suit specific manufacturing processes and applications. This flexibility enables adaptive positioning strategies tailored to different workpieces or production requirements, optimizing cycle times and enhancing overall process efficiency.
Integrated Safety Features
Safety is paramount in industrial environments, and the positioner incorporates various safety features to protect operators and equipment. Emergency stop functionality, overload protection, and collision avoidance systems safeguard against potential hazards, ensuring reliable and secure operation in diverse work environments.
Conclusion
The Two-Axis U-Type Servo Positioner represents a cutting-edge solution for precise positioning and manipulation in industrial automation and manufacturing environments. With its dual-axis servo control, versatile U-shaped configuration, and high-speed performance, this positioner empowers users to optimize production processes, enhance product quality, and drive innovation across a wide range of applications.
Data and variants of Two-axis U type servo positioner
| No. | Items | TP-UF-500-2A-XX | TP-UF-1000-2A-XX |
|---|---|---|---|
1 | Rated Payload | 500kg | 1000kg |
2 | Standard Rotation Dia. | 540mm | 600mm |
3 | Flipping Angle of Axis 1 | ±180° | ±180° |
4 | Rotation Angle of Aixs 2 | ±360° | ±360° |
5 | Rated Flipping Speed of Axis 1 | 50°/S | 17°/S |
6 | Rated Rotation Speed of Axis 2 | 50°/S | 24°/S |
7 | Repeat Positioning Accuracy | ±0.10mm | ±0.15mm |
8 | Standard Rotation Disk Diameter of Axis 2 | Φ500mm | Φ1500mm |
9 | Height of Axis 1 Rotation Center | Φ650mm | Φ1500mm |
Notes
1. Rated payload within the radius of the main axis. It may vary from model to model.
2. Total Height of Workpiece and Fixture may varies upon model to models.
3. Rotation Disk is standard. It can be customized.
4. Positioner Payload available upto 10000kg on custmoized orders
Product Details Download
- Download Broucher PDF
- Download Brochure DOC
